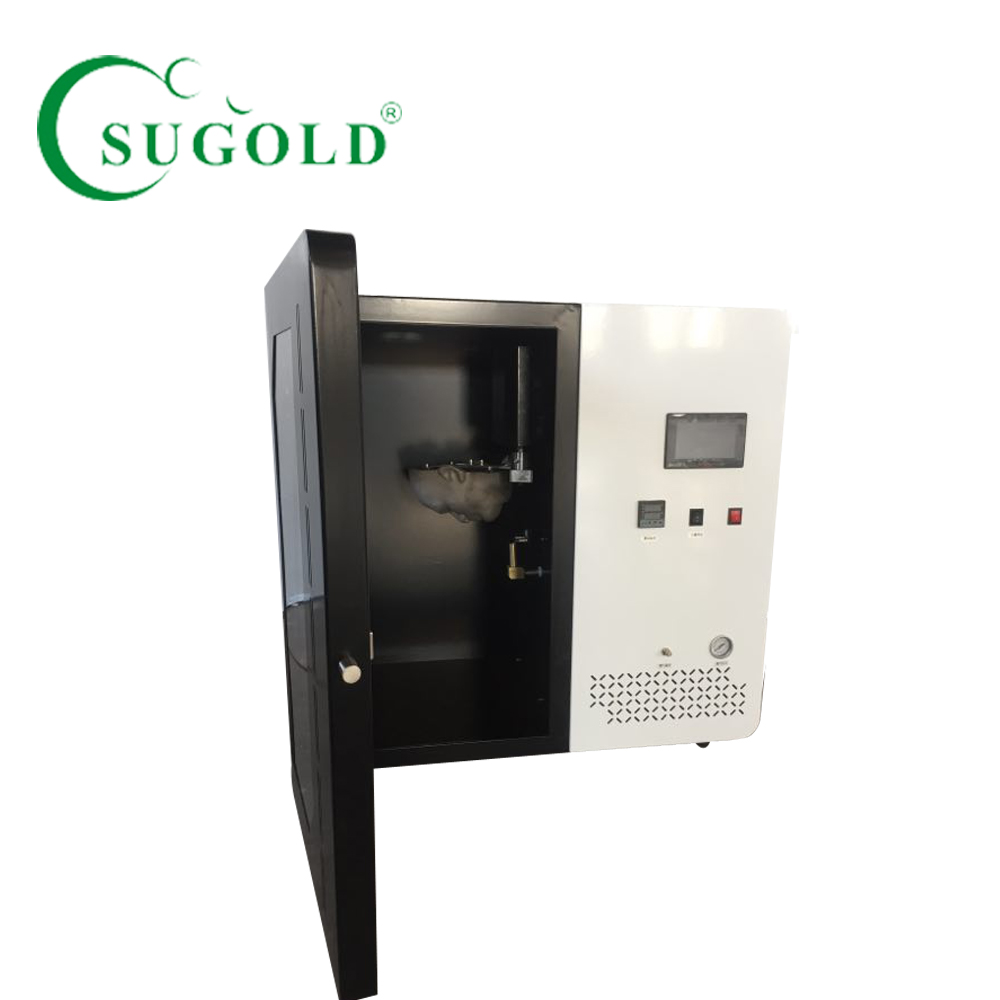

FX-610 ma sk flame retardant performance tester

Product Description

FX-610 ma sk flame retardant performance tester

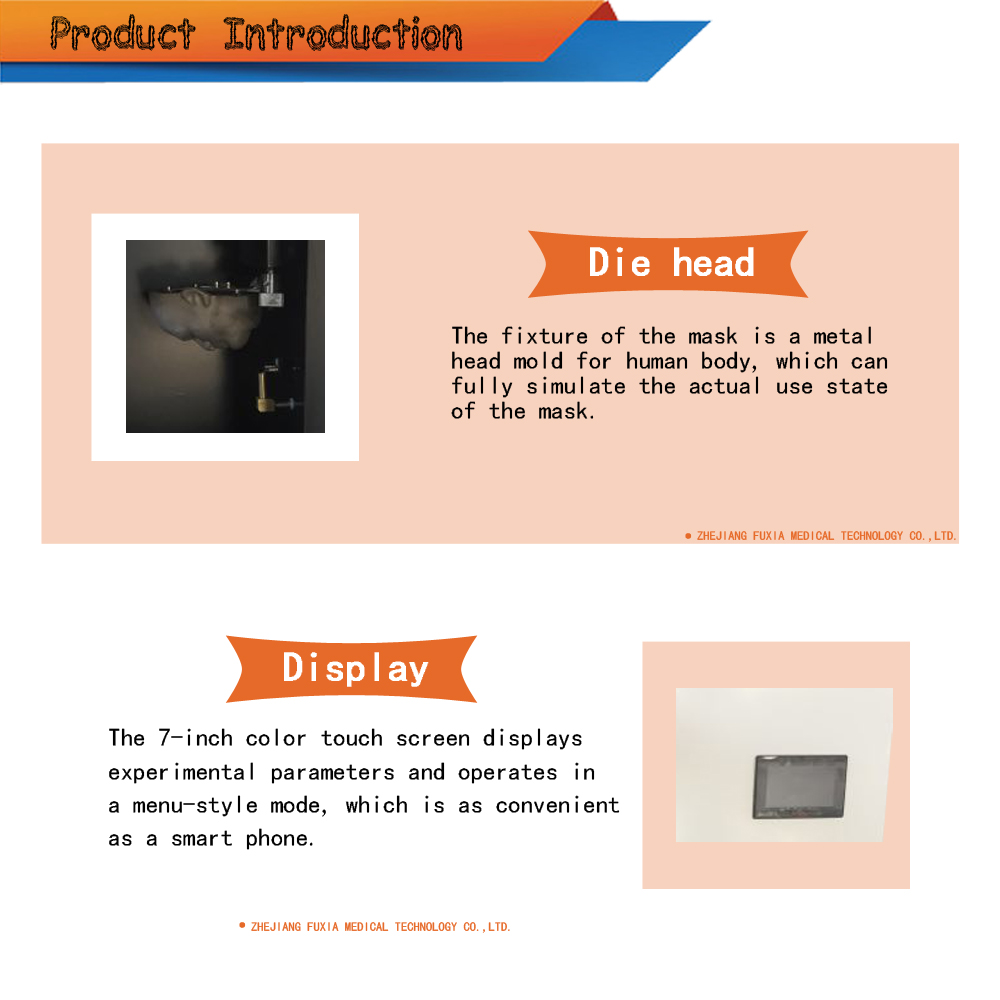

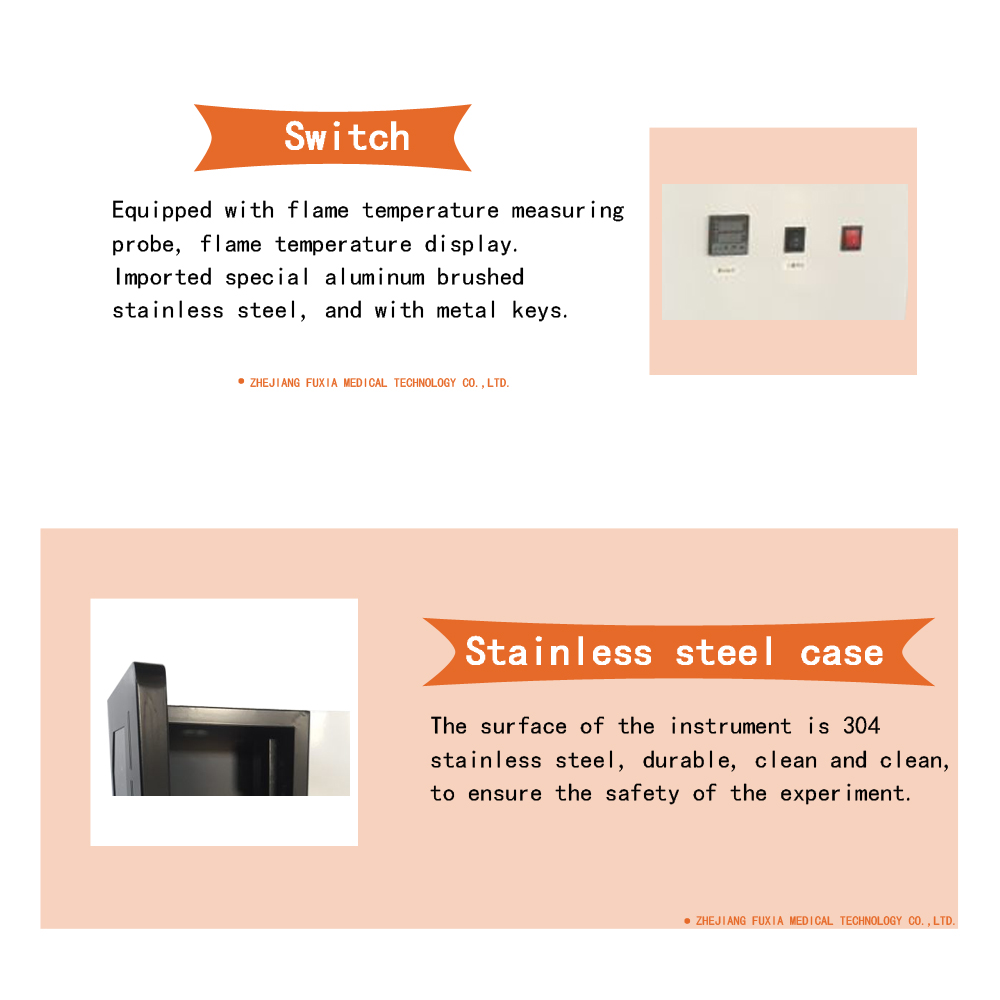

Features The mask fixture is a metal human head model, which can fully simulate the actual use state of the mask. The burner is equipped with combustible gas interface such as propane (liquefied gas). The height of the burner is adjustable. Automatic timing positioning of the burner.  The surface of the burner intake pipe is covered with a fireproof tube, which is resistant to high temperature of 1300 ℃ to ensure the safety of the experiment. The actual burning time and flame retardant time are automatically recorded, and the digital display. Equipped with flame temperature measurement probe and flame temperature display. Using imported motors, the instrument runs smoothly. The surface of the instrument is made of 304 stainless steel, which is durable, neat and clean in appearance. Imported special aluminum brushed stainless steel with metal buttons. The 7-inch color touch screen displays the experimental parameters, and the menu-type operation mode is as convenient as a smartphone. The core control components adopt STMicroelectronics 32-bit multi-function motherboard.

Linear velocity of the tip of the nose of the head mold	（60±5）mm/S
Flame height	Can be adjusted (adjusted at the factory at 40 ± 4mm)
Flame temperature measurement probe diameter	1.5mm
Flame height from the top of the burner	（20±2）mm
The temperature of the flame at a height of (20 ± 2) mm from the top of the burner	（800±50）℃
Burner height adjustment range	30mm
Wall thickness of metal die	2~3mm，Flame resistant
Afterburning time and smoldering time timer	0~99.99s，accurancy±0.01秒
Working power	AC220V，50Hz，50W;
Weight	about 30kg

Contact us if you need more details on Ma Sk Flame Retardant Performance Tester. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ma Sk Tester、Flame Retardant Performance Tester. If these products fail to match your need, please contact us and we would like to provide relevant information.
